The Comprehensive Guide to Forklift Extruded Motor Housing

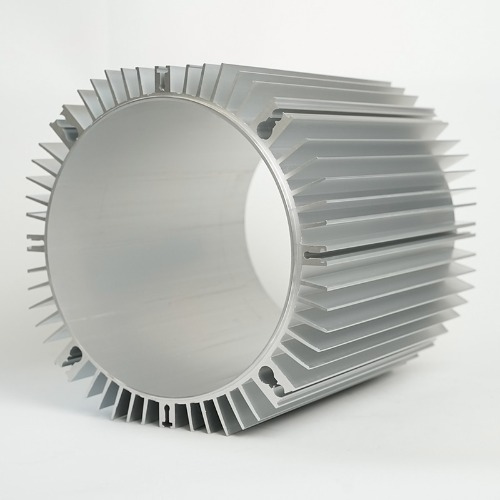

Understanding Forklift Extruded Motor Housing

In the demanding world of material handling and logistics, the forklift stands as an indispensable workhorse. At the heart of its electrical drive system lies a critical component: the motor housing. Specifically, the forklift extruded motor housing has become a preferred choice for manufacturers seeking durability, efficiency, and thermal performance. Unlike housings made through other processes like casting or fabrication, extrusion involves forcing aluminum or another alloy through a die to create a continuous profile with a constant cross-section. This method bestows unique properties that are exceptionally well-suited for the harsh operating environments forklifts frequently encounter. This guide delves deep into the intricacies of this vital component, exploring its benefits, manufacturing nuances, and key selection criteria.

Key Advantages of Extruded Aluminum for Motor Housings

The choice of material and manufacturing process for a motor housing is paramount, directly influencing the performance and lifespan of the forklift's motor. Extruded aluminum offers a compelling set of advantages that make it superior to alternatives for this specific application.

Superior Thermal Management

One of the most significant challenges in electric motor design is heat dissipation. Excessive heat can degrade insulation, reduce magnetic properties, and ultimately lead to motor failure. The extruded aluminum motor housing heat dissipation capability is arguably its greatest asset. The extrusion process allows for the integration of intricate cooling fins into the design in a single, seamless step. These fins dramatically increase the surface area of the housing, facilitating more efficient heat transfer from the internal stator and windings to the surrounding air. Compared to a cast iron housing, which acts more like a heat sink, an extruded aluminum housing actively promotes cooling, allowing for a more compact motor design or higher power density without the risk of overheating.

Remarkable Strength-to-Weight Ratio

Aluminum alloys used in extrusion, such as 6061 and 6063, provide exceptional structural strength while remaining remarkably lightweight. This high strength-to-weight ratio is crucial for electric forklifts, where reducing overall vehicle weight directly translates to increased energy efficiency and longer battery life per charge. A lighter motor housing contributes to a lower center of gravity, enhancing the stability and maneuverability of the forklift. When contrasting the weight, an extruded aluminum housing can be up to 60% lighter than a equivalent housing made from cast iron, a critical factor in electric vehicle design where every kilogram matters for operational range and performance.

Design Flexibility and Consistency

The extrusion process offers unparalleled design flexibility. Engineers can create complex cross-sectional profiles that would be difficult or impossible to achieve economically with other manufacturing methods. This includes not only external cooling fins but also internal channels for enhanced airflow or mounting features. Furthermore, extrusion produces parts with excellent dimensional consistency and smooth surface finishes along the entire length of the profile. This consistency ensures a precise fit with other components, simplifies assembly, and reduces the need for secondary machining operations, thereby lowering production costs and improving overall quality control.

Selecting the Right Motor Housing for Your Forklift

Choosing the appropriate motor housing is not a one-size-fits-all decision. It requires a careful evaluation of several factors to ensure optimal performance, longevity, and cost-effectiveness for your specific application. The quest for the best material for forklift motor housing often leads to extruded aluminum, but understanding why is key.

Critical Selection Criteria

When specifying a motor housing, consider the following parameters:

• Application Duty Cycle: How intensively will the forklift be used? High-duty cycles in distribution centers generate more heat and demand the superior cooling of extrusion.
• Operating Environment: Will the forklift be used indoors, outdoors, or in corrosive environments like cold storage facilities? Aluminum naturally forms a protective oxide layer, offering good corrosion resistance.
• Weight Constraints: Is the forklift designed for maximum energy efficiency? The weight savings of aluminum directly impact battery performance.
• Thermal Requirements: What is the maximum operating temperature of the motor? The design must effectively dissipate the heat generated at peak load.
• Budgetary Considerations: While the initial tooling cost for extrusion dies can be high, the per-unit cost for high-volume production is very competitive, especially when considering the reduction in secondary processing.

Material Comparison: Extruded Aluminum vs. Alternatives

To make an informed decision, it is essential to compare extruded aluminum against other common housing materials. The following table outlines the key differences, highlighting why extrusion is often the preferred choice for modern electric forklifts.

The table below provides a comparative analysis of different motor housing materials:

As the table demonstrates, extruded aluminum provides an optimal balance of low weight, high thermal conductivity, and excellent strength. While cast iron offers greater strength, its weight and poor thermal performance are significant drawbacks for electric forklifts. Fabricated steel is versatile but often more expensive due to labor costs. Die-cast aluminum is a good alternative but typically cannot achieve the same level of thermal management complexity as extrusion.

Maintenance and Durability of Extruded Motor Housings

The longevity of a forklift's drive system is heavily dependent on the resilience of its components. A common query among maintenance professionals is regarding the durability of extruded motor housing in forklifts. Fortunately, extruded aluminum housings are renowned for their robust nature.

Inherent Durability Features

Extruded aluminum housings are inherently durable due to the properties of the material and the manufacturing process. The aluminum alloys used are chosen for their mechanical strength, resistance to impact, and ability to withstand the vibrations inherent in forklift operation. The monolithic structure of an extruded profile, with no welds or joints in its longitudinal direction, eliminates potential points of failure that can develop in fabricated designs. This one-piece construction provides superior structural integrity, ensuring the housing can protect the delicate internal components—stator, rotor, and bearings—from physical damage and environmental contaminants throughout years of strenuous use.

Maintenance and Corrosion Resistance

Maintaining an extruded motor housing is remarkably straightforward. The smooth surface finish, a natural result of the extrusion process, makes it difficult for dirt and grime to adhere, allowing for easy cleaning. The inherent corrosion resistance of aluminum means it will not rust, even in humid environments. However, in particularly aggressive environments, such as those involving chemical exposure or saltwater, additional surface treatments like powder coating or anodizing can be applied to the housing to provide an extra layer of protection. This enhances the corrosion resistant forklift motor housing properties, ensuring long-term reliability and a pristine appearance with minimal upkeep effort.

The Extrusion Manufacturing Process Explained

Understanding how these housings are made provides deeper insight into their quality and performance. The process of creating a custom extruded motor housing for electric forklifts is a precise and fascinating engineering feat.

From Billet to Profile: A Step-by-Step Overview

The journey begins with a cylindrical billet of aluminum alloy, which is heated to a specific temperature where it becomes soft but not molten. This heated billet is then loaded into a container within a large hydraulic press. A ram applies immense pressure, forcing the softened aluminum through a custom-designed steel die. The shape of the die's opening determines the cross-sectional profile of the extrusion. As the aluminum emerges from the die, it is pulled onto a run-out table and cooled, often using air or water quenching to achieve the desired material properties. The long, continuous profile is then stretched to straighten it and relieve internal stresses before being cut to the required lengths. These individual housing blanks subsequently undergo precision machining to create specific features like bearing seats, mounting holes, and connector ports, resulting in a finished product ready for assembly.

Why Customization Matters

The true power of extrusion lies in its capacity for customization. Manufacturers are not limited to standard shapes. By designing a custom die, they can create a housing that is perfectly tailored to its application. This includes:

• Optimizing the number, shape, and size of cooling fins for maximum heat dissipation based on thermal simulation data.
• Integrating mounting brackets or cable conduits directly into the profile, eliminating additional parts.
• Creating internal labyrinths or channels to guide airflow in a specific pattern across the motor.

This ability to design a holistic solution, rather than adapting a standard housing, allows for significant performance enhancements and can lead to a more compact and integrated final motor assembly.

Future Trends in Motor Housing Design

The evolution of forklift technology, particularly with the rapid adoption of electric power, continues to drive innovation in component design. The role of the motor housing is expanding beyond a simple protective shell.

Integration and Lightweighting

The trend towards further integration and lightweighting is accelerating. Future extruded motor housings may be designed to incorporate functionality from other adjacent components, acting as a structural element of the drive unit itself. The use of even higher-strength aluminum alloys and advanced extrusion techniques will continue to push the boundaries of weight reduction without compromising strength or durability. Furthermore, the focus on cost-effective extruded housing solutions will intensify, driven by the need to make electric forklifts more accessible. Advances in die design and process automation will help to reduce the initial investment and per-unit costs of these custom components, solidifying extrusion's position as the manufacturing method of choice for high-performance motor housings in the material handling industry for years to come.
